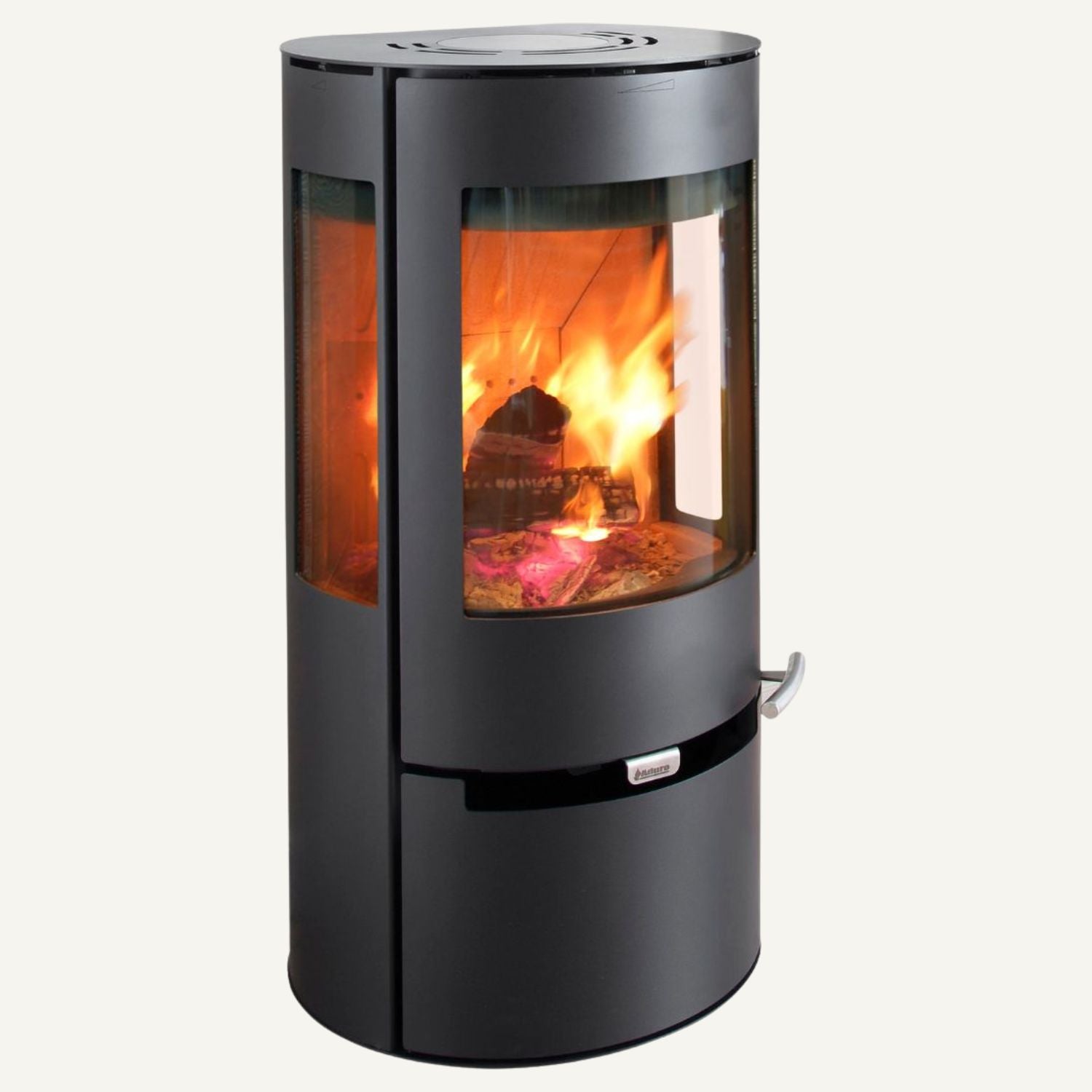

Aduro 9 Air

Name: Aduro 9 Air
Brand: Vall-ker KFT
SKU: 50296
Availability: InStock

Compare with other stoves

Beschrijving

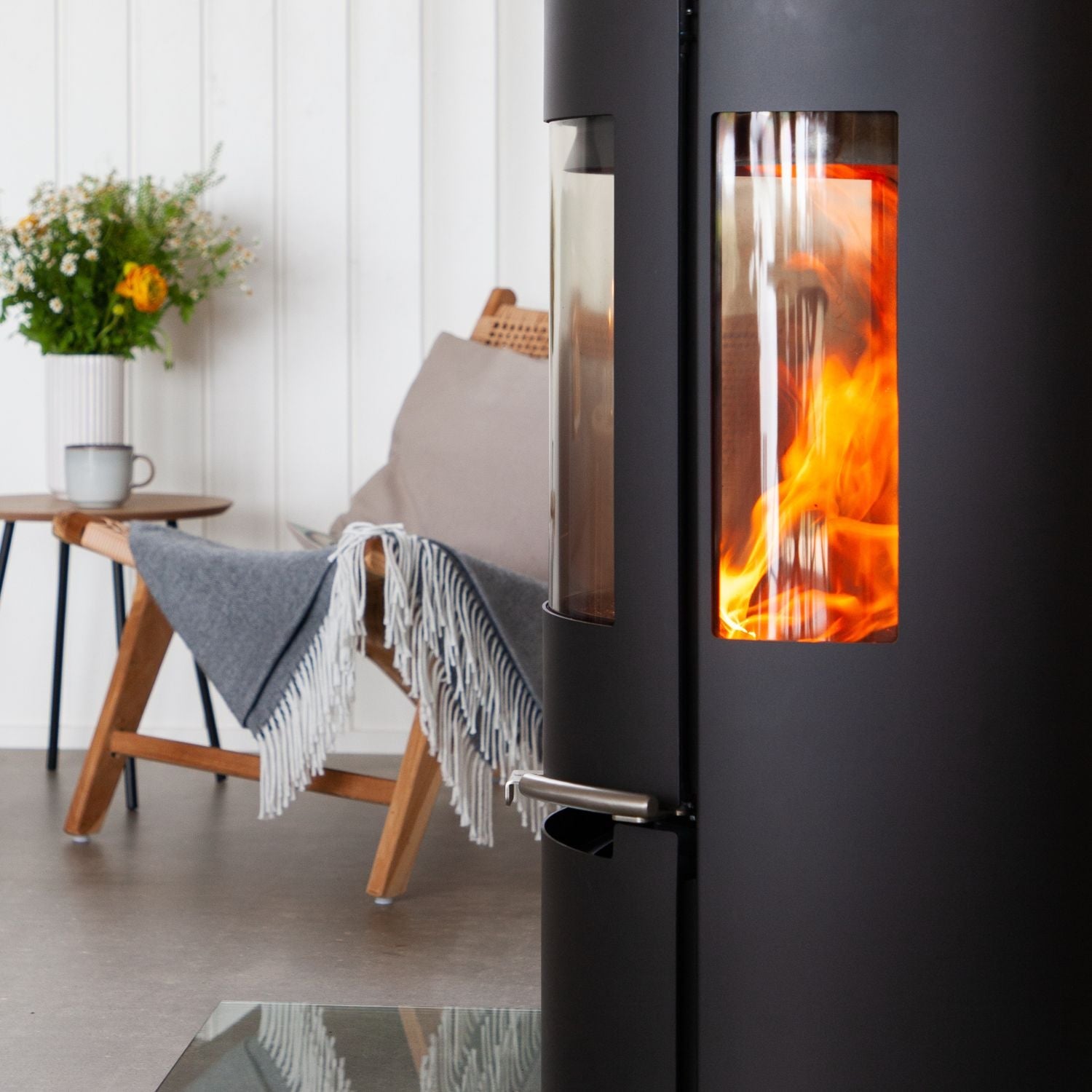

An impressively large glass area is achieved by adding side panes and minimising the bars between the glass in the door and the glass at the sides. Visual access to the living fire has been a crucial parameter all the way – so an efficient air-wash system ensures that soot doesn’t collect on the glass at the front or sides. This is a timeless and elegant fixture for modern homes. The design is the same as the Aduro 9 - the difference is the possibilty for external air supply.

SKU: 50296

One of Europe's largest stove manufacturers

Al meer dan 500.000 ovens verkocht

Optie verlengde garantie

Loading images...

Specificaties

Effect

Nominal power

8,0 kW
Operational area

3-9 kW
Heats

30-140 m2
Efficiency

>80%
Energy efficiency class

A (A++ - G)
Energy efficiency index

106
Chimney draft

12 Pa

Afmetingen

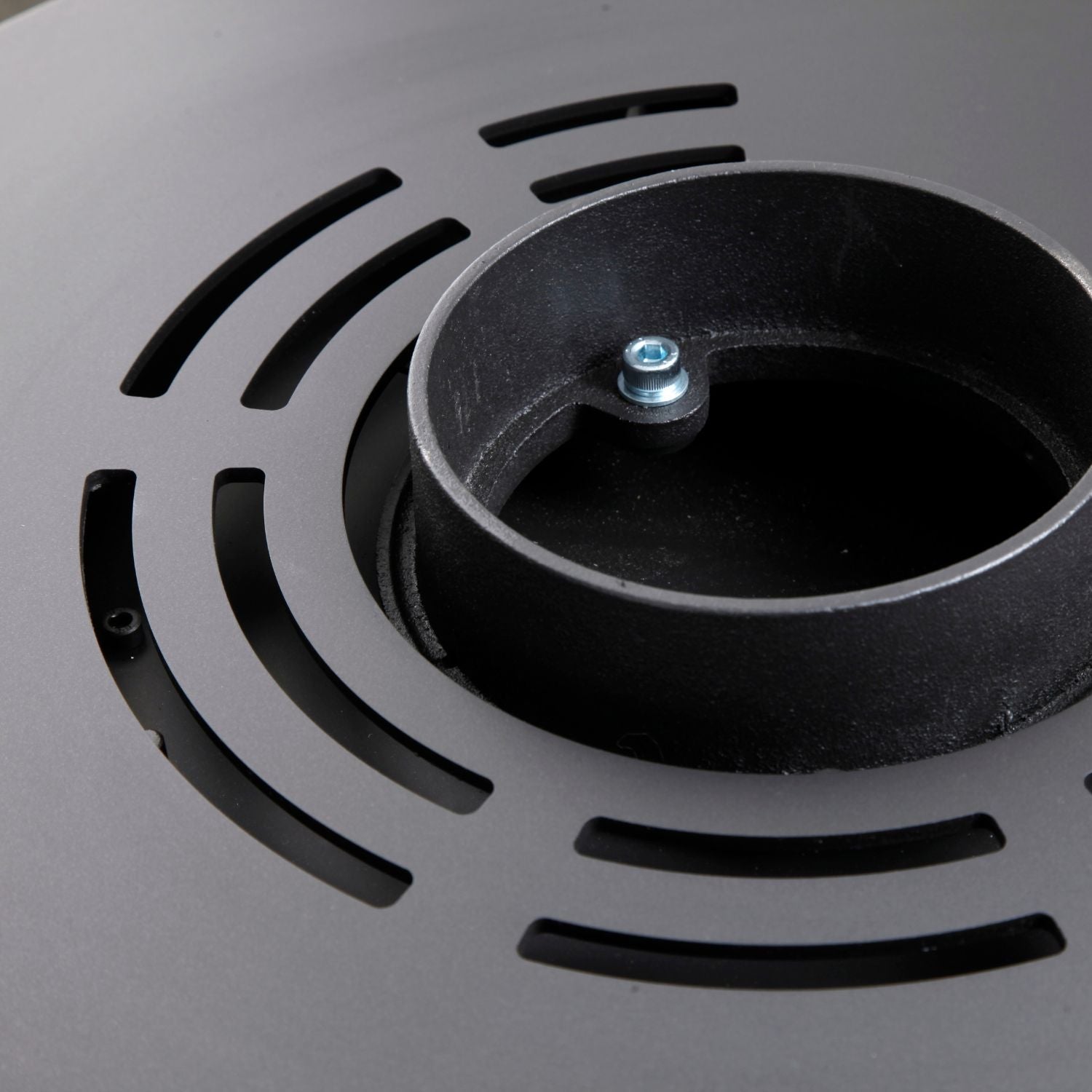

Flue outlet, diameter

Ø15 cm boven/achter
Height

95,8 cm
Width

50 cm
Depth

44,7 cm
Distance from floor to centre of rear outlet

84 cm
Distance from centre of exhaust branch to rear edge of stove

20,3 cm
Height exhaust branch above floor level

92,8 cm
Width of combustion chamber

40 cm
Maximum wood length

39 cm
Weight

103 kg
Dimensional drawings

Afstand tot brandbaar materiaal

Behind

7,5 cm
To the side

70 cm
To furniture

100 cm

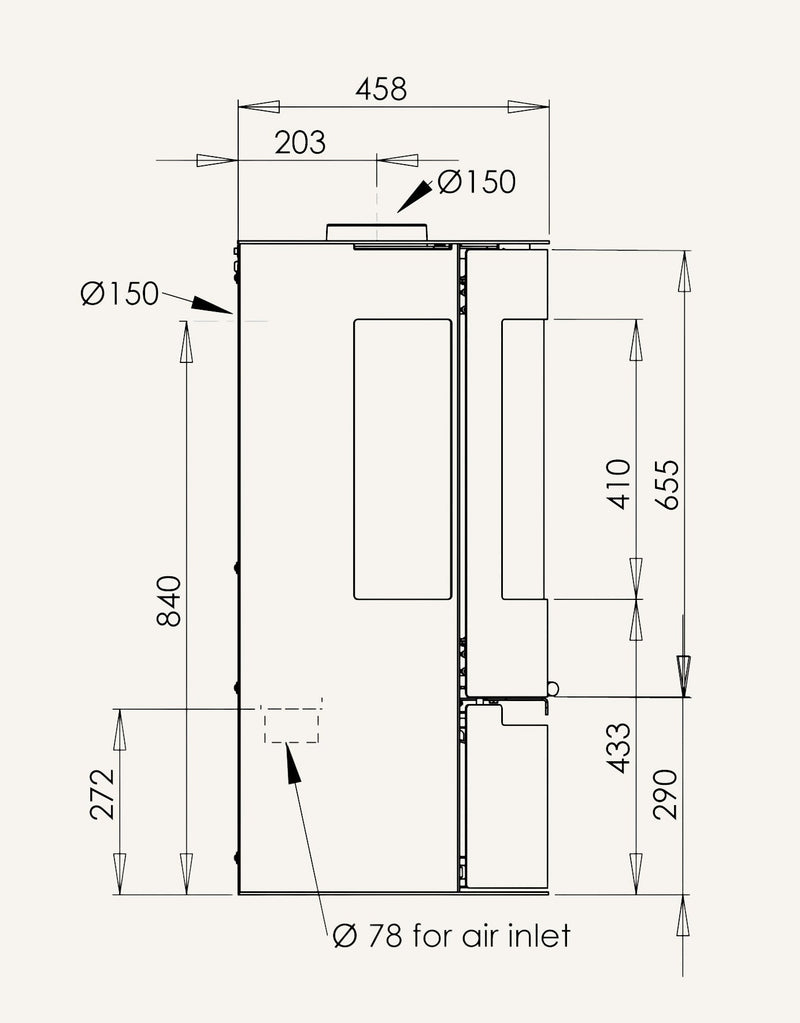

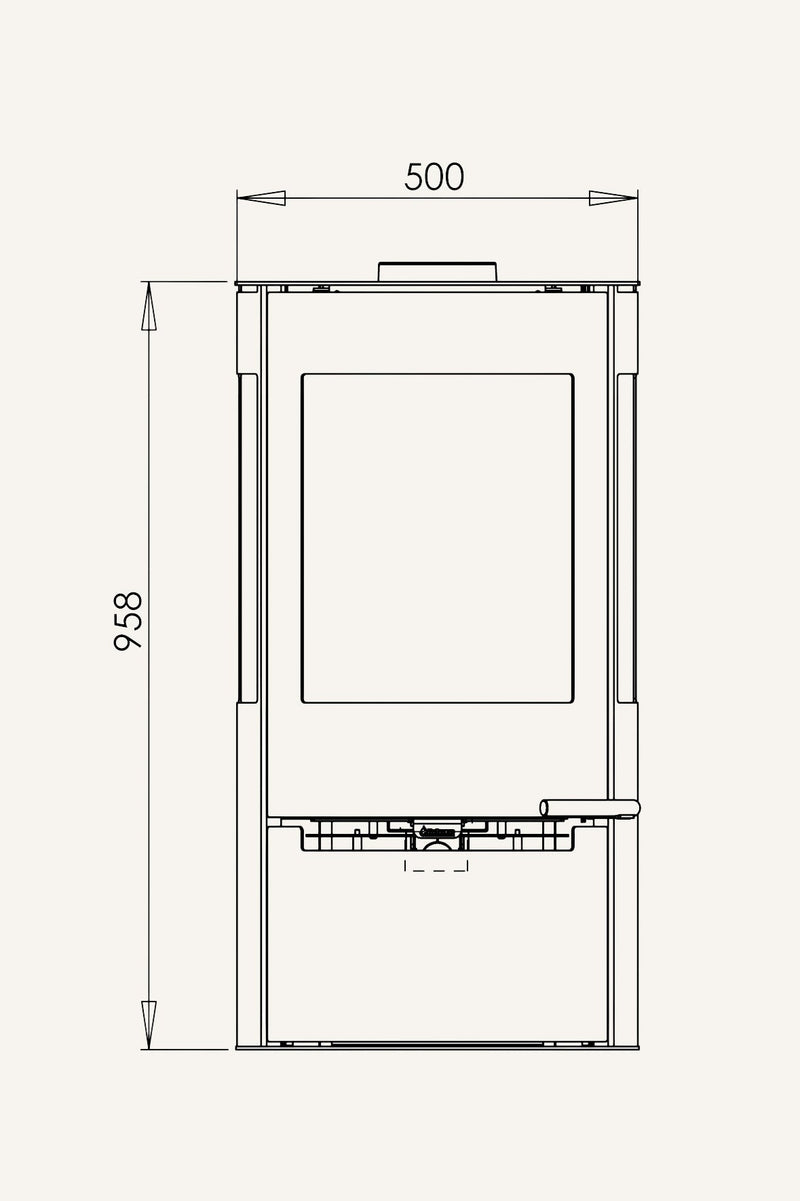

Dimensional drawing

Please ensure that all local rules and regulations are complied with, including CE marking of the flue pipe. Additionally, distance requirements to flammable material for the pipe must be respected.

Distance to firewall (applies only to Norway and Sweden)

5 cm behind / 30 cm to the side

Voordelen

Convection stove

Ja
Air-wash system

Ja
Primary, secondary and tertiary air supply

Ja

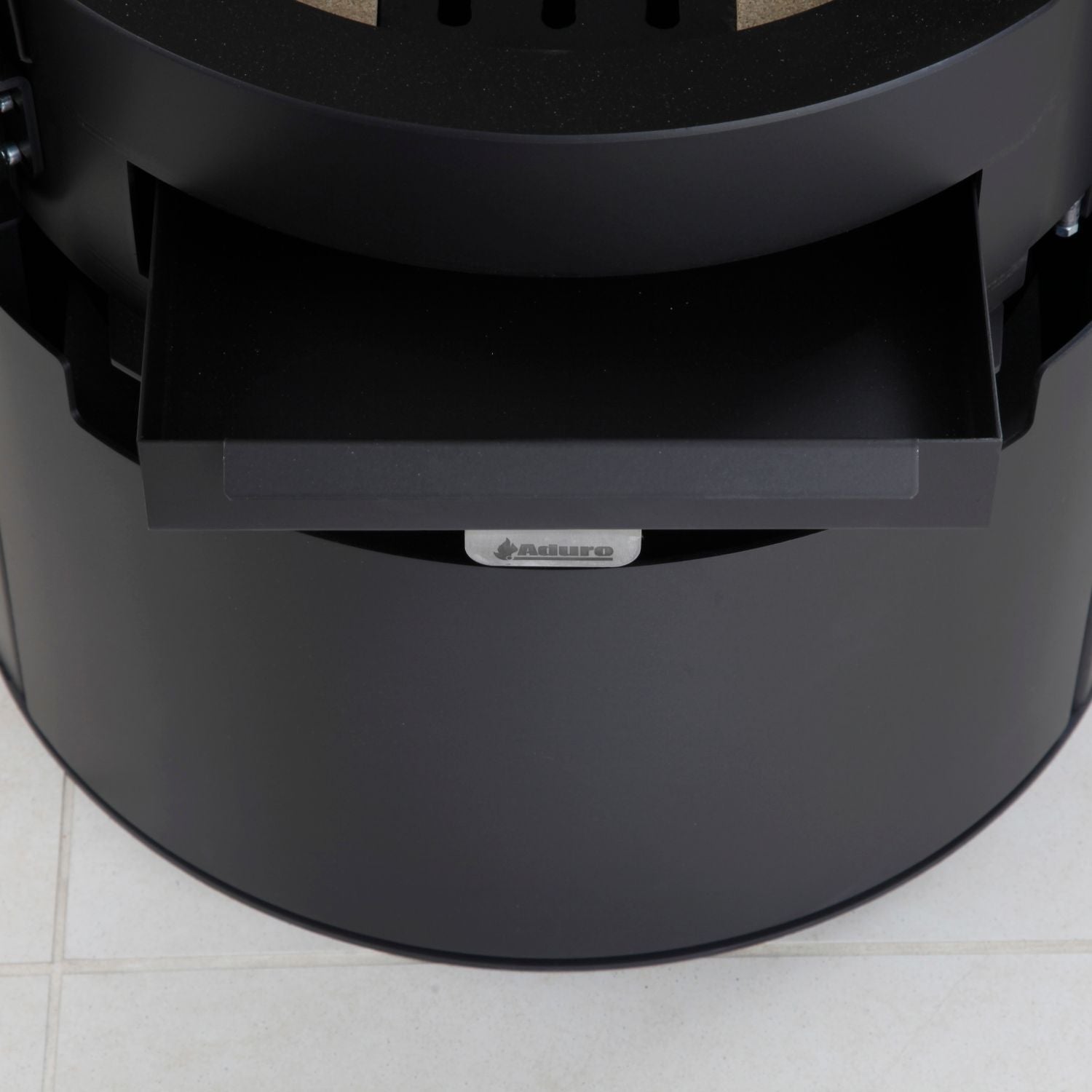

Ash pan

Ja
Equipped with Aduro-tronic

Ja
Possibility of extended warranty

Ja
Prepared for external air supply

Ja

Download

For user manual and DoC, click here.

Certificeringen

Groene vlam, NS3058, CE, EN16510 & Ecodesign

Why choose an Aduro wood burning stove?

Optimaliseer uw verbranding met Aduro-tronic

Aduro-tronic regelt automatisch de primaire luchttoevoer in uw houtkachel. Dit betekent eenvoudige bediening, tot 40%* minder houtverbruik en een schonere verbranding. Het automatische systeem zit geïntegreerd onder de verbrandingskamer en werkt zonder elektriciteit.
