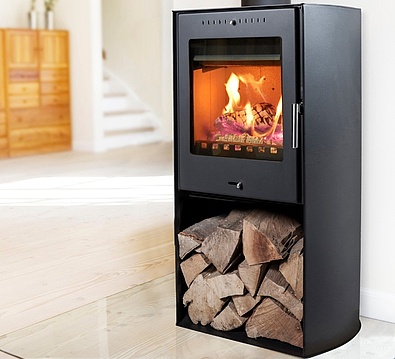

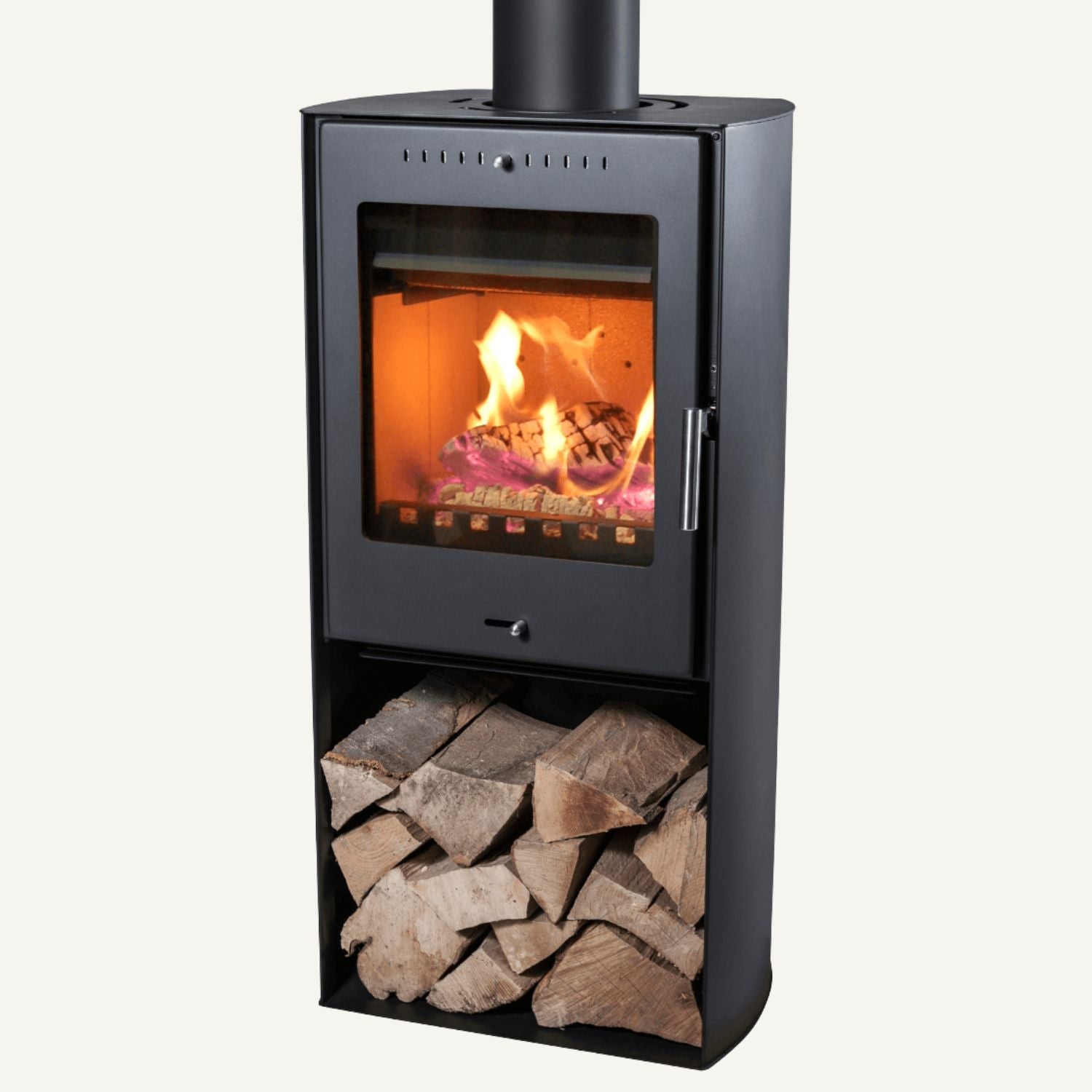

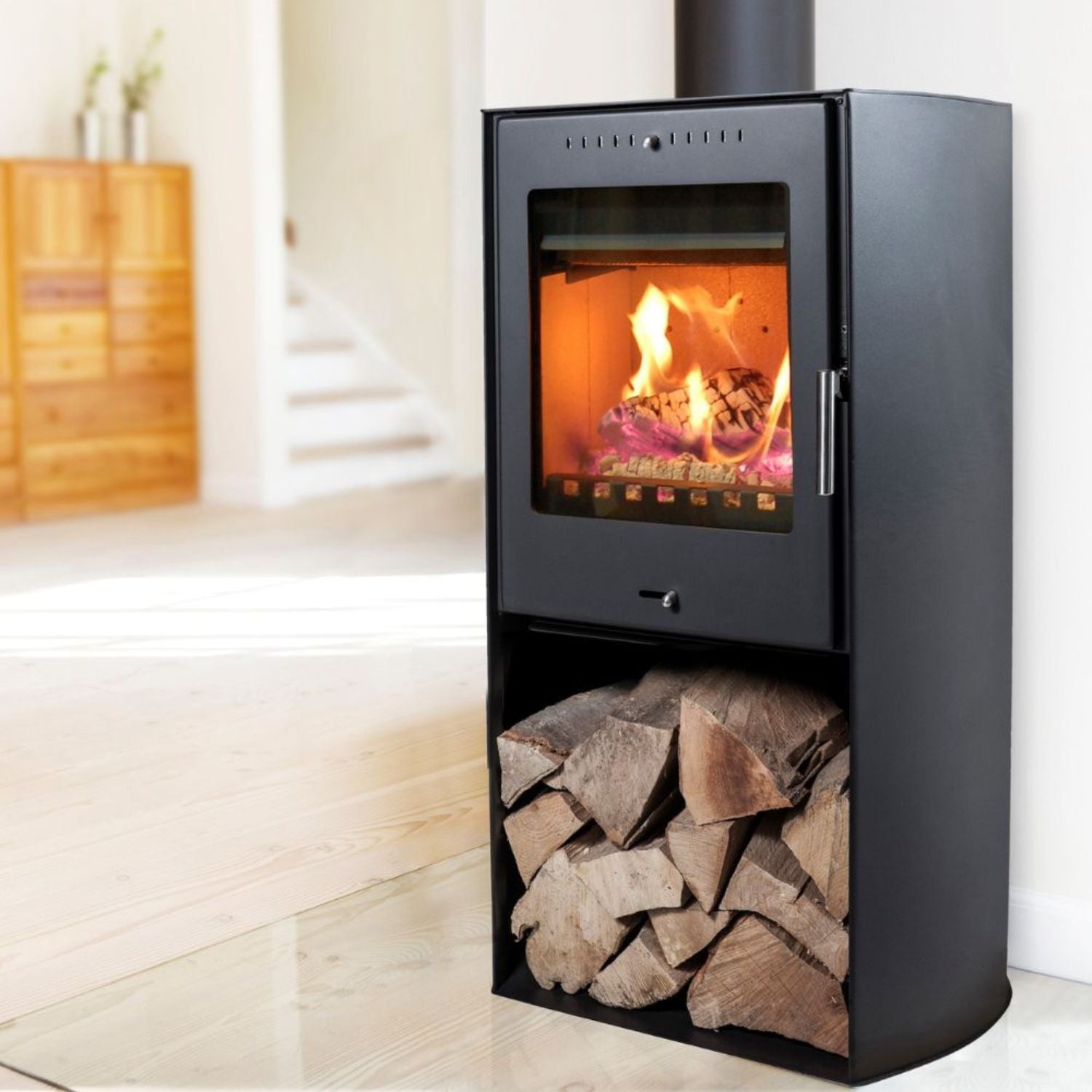

Asgård 9
The Asgård 9 combines soft rounded sides with a flat front. The stove has a timeless design and therefore fits in with the modern as well as the classic type of home... Read more
Interested in buying?
Buy your wood burning stove from one of our dealers. Follow the link to find the dealer list.
The Asgård 9 combines soft rounded sides with a flat front. The stove has a timeless design and therefore fits in with the modern as well as the classic type of home.
Effect
Nominal power
5,0 kW
Operational area
2-7 kW
Heats
30-120 m2
Energy efficiency
> 80%
SEER
70%
Energy class
A+ (A++ - G)
Advantages
✓ Convection stove
✓ Air-wash system
✓ Primary, secondary and tertiary air supply
✓ Ash pan
Measurements
Flue outlet top
Ø150 mm
Dimension (HxWxD)
98,5 x 48,7 x 36,4 cm
Distance from centre of exhaust branch to rear edge of wood burning stove
18,2 cm
Height exhaust branch above floor level
96 cm
Width of combustion chamber
33 cm
Max log length
32 cm
Weight
70 kg
Distance to combustible material
Behind
10 cm
At side
30 cm
To furniture
85 cm
Please ensure that all local rules and regulations are complied with, including CE marking of the exhaust connector. Additionally, distance requirements to flammable material for the exhaust connector must be respected.
