Aduro H5 - Simple and cubic hybrid stove

With a cubic expression, the Aduro H5 differs significantly from the other stoves in the Aduro Hybrid series. The smooth surface and sharp corners combined with the elegant handles secure an elegant finish. The pellet container is placed underneath the combustion chamber for easy and convenient filling of... Read more

Interested in buying?

Buy your hybrid stove from one of our dealers. Follow the link to find the dealer list.

  • Description
  • Technical
  • Related products

With a cubic expression, the Aduro H5 differs significantly from the other stoves in the Aduro Hybrid series. The smooth surface and sharp corners combined with the elegant handles secure an elegant finish. The pellet container is placed underneath the combustion chamber for easy and convenient filling of wood pellets, and it can hold approx. 13 kg of pellets.

With Aduro H5 you will have:

  • Controlled manually or via smartphone
  • Programming options with weekly program and temperature control
  • Can start on its own and maintain room temperature
  • Possibility for external air supply
  • Automatically supply of air due to the Aduro-tronic automatic
  • Firing in the greatest possible consideration of the environment
  • Patented solution

Experience Aduro H5 with 360°

Now you can see it up close. Get a better impression of Aduro H5 all the way around with your smartphone or by using the mouse if you are sitting by the computer.

Effect

Nominal power

7,0 kW firewood / 6,8 kW wood pellets

Operational area

2-9 kW (Firewood 3-9 kW / Wood pellets 2-7 kW)

Heats

20-140 m2

Energy efficiency

> 83% firewood / > 87% wood pellets

SEER

82%

Energy efficiency index

128,1

Energy efficiency class

A(A++ - G)

Power consumption in operation

18-33 Watt

Chimney draft

According to EN13240 and EN14785. 10-14 Pa with a cold stove

Pellets

You should only use bright Ø6 mm pellets with a maximum length of 30 mm – type ENplus quality A1. Read more here

Wood pellet capacity: approx. 13 kg

App

The app is compatible with iOS 12 or later versions and Android versions from 5.0.

Endorsements

EN13420, EN14785, CE, NS3058 & Ecodesign

Download

For user manual and DoC for Aduro H5, click here.

Measurements

Flue outlet diameter top/rear

Ø150 mm

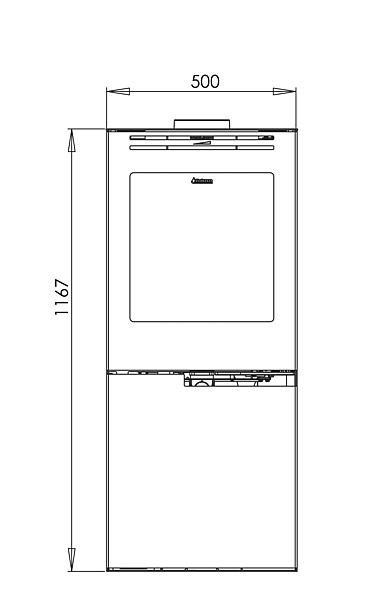

Outer dimensions (HxWxD)

116,7 x 50,3 x 50,6 cm

Distance from floor to centre of rear outlet

104,1 cm

Distance from centre of exhaust branch to rear edge of stove

25,3 cm

Height exhaust branch above floor

114,7 cm

Width of combustion chamber

38 cm

Maximum wood length

37 cm

Weight

132 kg

Measurements

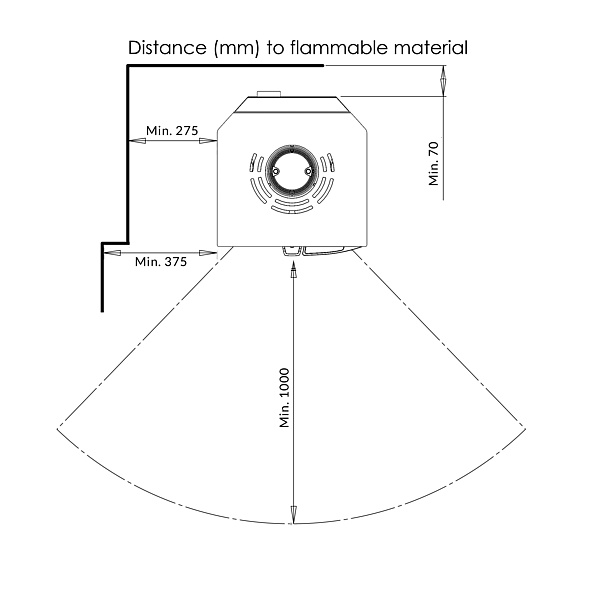

Distance to combustible material

Rear



5 cm (from air intake) / 7 cm (from the back of the stove)



To the side



37,5 cm



Distance to furniture



100 cm



Please ensure that all local rules and regulations are complied with, including CE marking of the exhaust connector. Additionally, distance requirements to flammable material for the exhaust connector must be respected.

Distance to combustible material

TOP
